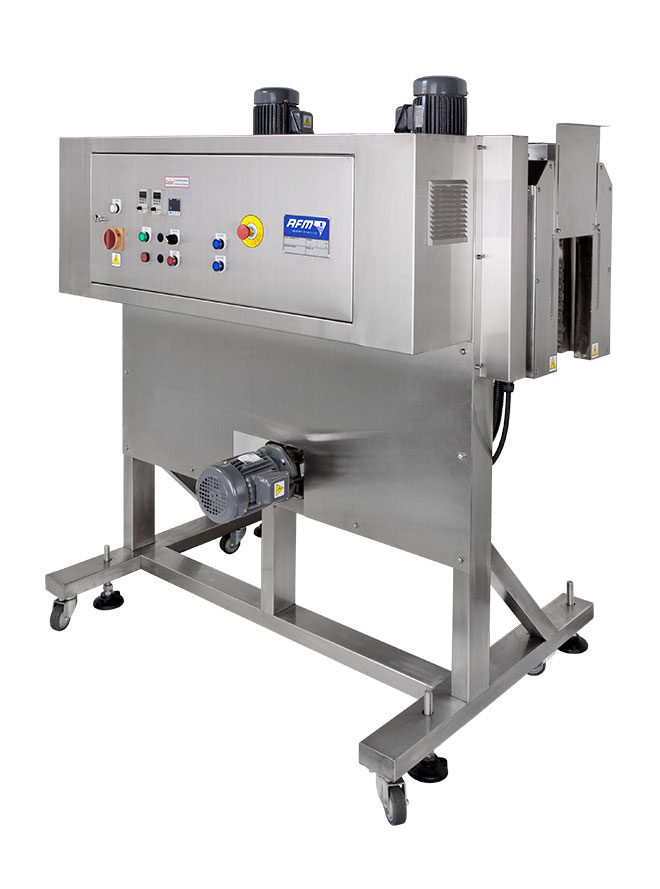

The ES-200 Electric Heat Tunnel For Shrink Sleeve Labeling
+ Precision shrink labeling
+ More control, more performance
+ Built for your operation
The ES-200 Electric Heat Tunnel for shrink sleeve label and tamper evident band application from American Film & Machinery is designed for middle, full body, and full body and cap shrink applications. ES-200 is a perfect addition to shrink labeling lines in manufactured goods industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, and chemical products.
More Control, More Performance
Shrink quality shouldn’t be limited by your machine’s capabilities. The ES-200 Electric Heat Shrink Tunnel comes equipped with two independent VFD air flow controls that allow the air flow in each of the two zones to be regulated separately. The almost infinite air flow adjustment paired with accurate, consistent digital temperature control and adjustable air delivery louvers make the ES-200 an extremely versatile shrink tunnel. The ES-200 provides optimal shrink control and high quality finish on a number of films including PVC, PETG, OPS and PLA.
Built For Your Operation
Designed to work as an integral part of your day-to-day packaging operations, the ES-200 tunnel is constructed from rugged stainless steel and supplied with a cantilevered stainless steel stand. Motorized height control makes installation easy and can be completed in minutes using standard tools to have you up and running, saving your company money and increasing your ROI. Due to its versatility and reliability, the ES-200 Electric Heat Tunnel is also ideal for the changing needs of contract packagers.

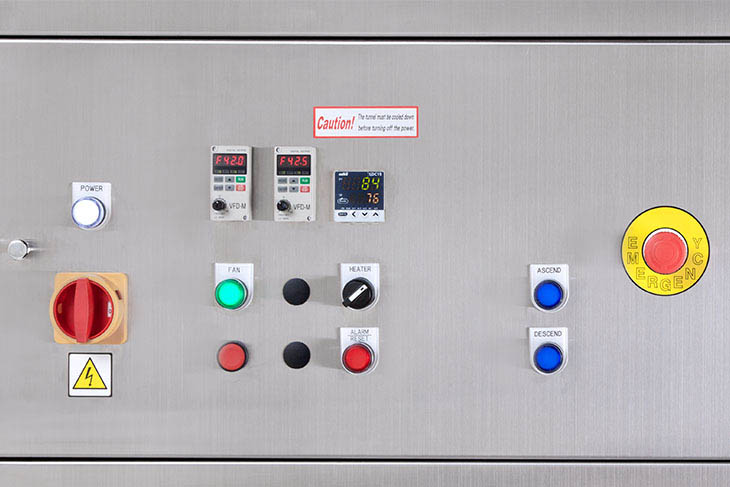

The Operator side controls are conveniently placed for ease of adjustment

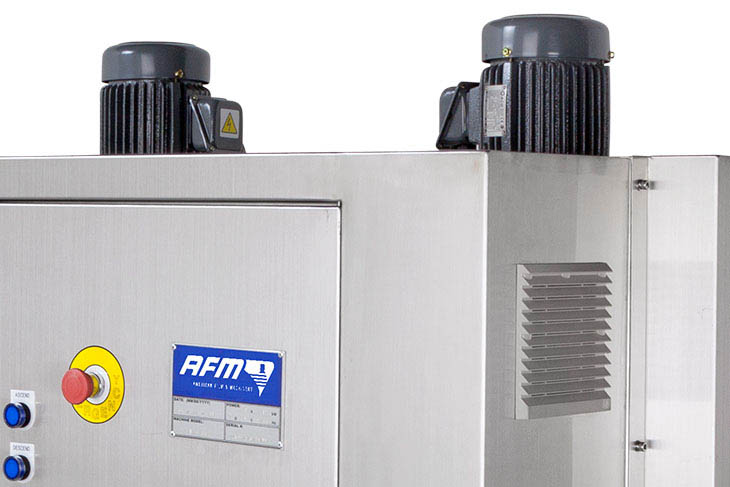

Two independent VFD air flow controls allow adjustment of air flow in two separate zones

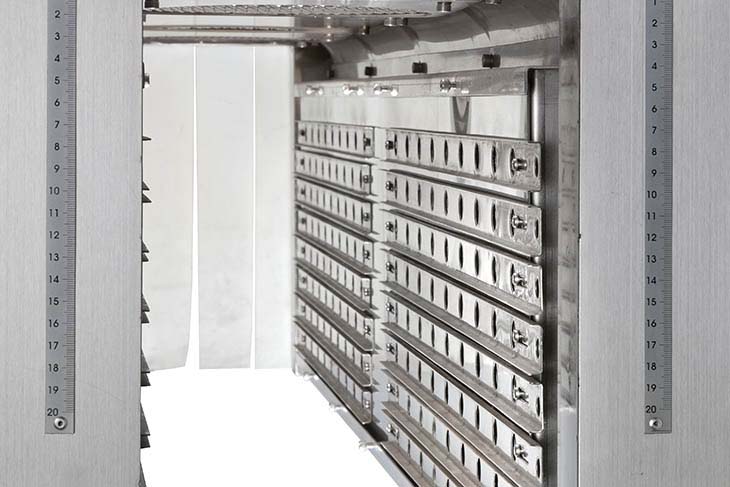

High quality electric heating elements provide uniform heat distribution to ensure a quality finish

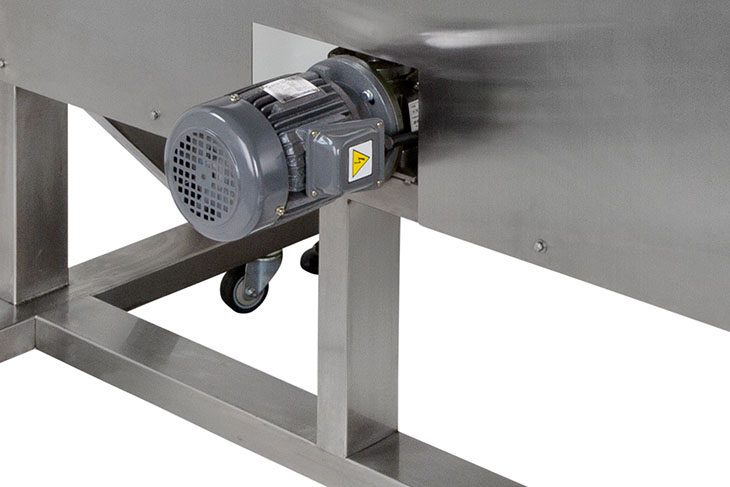

Motorized height control makes installation quick and easy; setup and changeover can be completed in minutes
TECHNICAL SPECIFICATIONS OF THE ES-200
- Power: 3 Phase 240/480V 50/60Hz
- Motor: AC 1/2 x 2
- Machine Dimensions: 1000mm (W) x 1500mm (L) x 1600-1900mm (H) 39.3” (W) x 59” (L) x 63”- 74.8” (H)
- Tunnel Dimensions: 200mm (W) x 1500mm (L) x 350mm (H) 7.9” (W) x 59” (L) x 13.8” (H)
- Temperature: 400ºF
TECHNICAL SPECIFICATIONS OF THE ES-200 XL
- Power: 3 Phase 240/480V 50/60Hz
- Motor: AC 1/2 x 2
- Machine Dimensions: 1000mm (W) x 1500mm (L) x 1600-1900mm (H) 39.3” (W) x 59” (L) x 63”- 74.8” (H)
- Tunnel Dimensions: 250mm (W) x 1500mm (L) x 350mm (H) 9.8” (W) x 59” (L) x 13.8” (H)
- Temperature: 400ºF
