What Is a Shrink Sleeve Labeling Machine and How Does It Work?
In today’s competitive marketplace, packaging does more than protect a product—it tells a story. From vibrant 360-degree branding to tamper-evident seals, shrink sleeve labeling has become a preferred solution across industries. But what exactly is a shrink sleeve labeling machine, and how does it work?
What Is a Shrink Sleeve Labeling Machine?
A shrink sleeve labeling machine is a piece of automated packaging equipment that applies heat-shrinkable film labels (known as “sleeves”) over a container. Once applied, heat is used to shrink the sleeve tightly around the product’s surface, conforming perfectly to its shape.
Unlike traditional pressure-sensitive labels, shrink sleeves:
- Cover up to 360 degrees of the container
- Conform to unique shapes and contours
- Provide tamper-evident functionality
- Offer high-impact, full-body graphics
Shrink sleeve labeling machines are widely used in industries such as:
- Beverage
- Food
- Pharmaceuticals
- Personal care
- Household products
How Does a Shrink Sleeve Labeling Machine Work?
The shrink sleeve labeling process is precise and efficient. Here’s a step-by-step breakdown:
1. Film Unwinding
Shrink sleeve labels are supplied in roll form. The machine unwinds the printed shrink film from the roll under controlled tension to ensure smooth feeding.

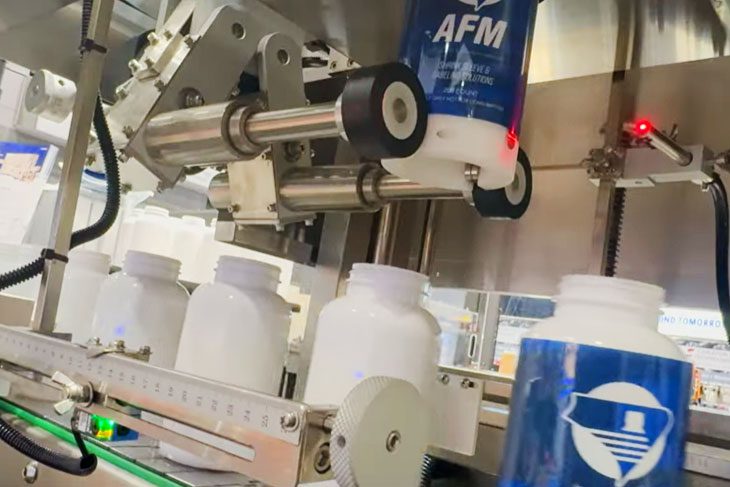

2. Registration & Cutting
Using sensors, the machine detects registration marks printed on the film to ensure accurate cutting. The sleeve is then cut to the exact length required for the specific container.
3. Sleeve Application
The cut sleeve is opened and placed over the container. Depending on the setup, this may happen:
- Vertically (drop-on method)
- Horizontally (side insertion)
At this stage, the sleeve loosely fits around the product.

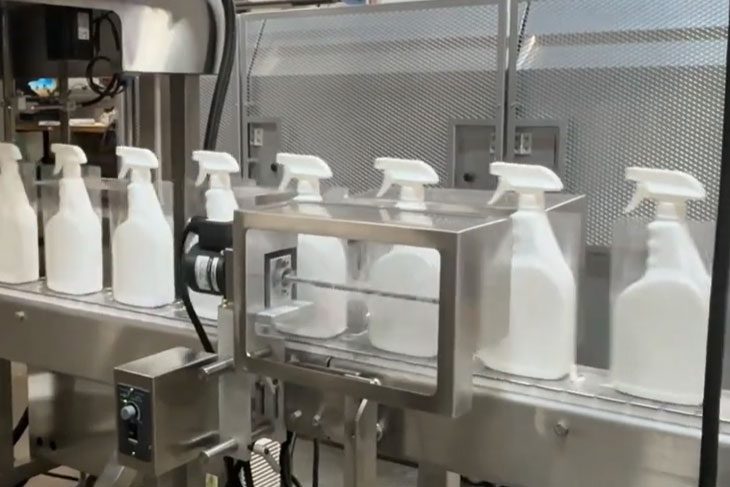

4. Brush Down
The brush down pushes the sleeve down on the container to ensure the sleeve is placed at the bottom of the product.
5. Heat Shrinking
The container passes through a heat source—typically a steam tunnel or hot air tunnel. Heat causes the film to shrink uniformly, tightly conforming to the shape of the container.
This creates:
- A smooth, wrinkle-free finish
- Full-body coverage
- Secure label adhesion without glue

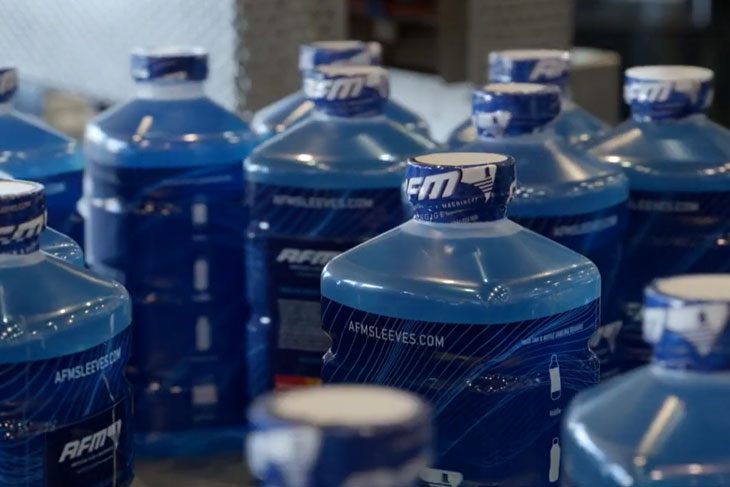

6. Cooling & Final Inspection
After shrinking, the container cools, and quality checks ensure proper placement, alignment, and finish before moving to packaging.
Key Components of a Shrink Sleeve Labeling System
A complete shrink sleeve system typically includes:
- Unwind system – Feeds the shrink film
- Cutting unit – Precisely cuts sleeves to size
- Mandrel (Application head) – Places sleeves onto containers
- Brush down – Pushes the sleeve down on the container
- Heat tunnel – Shrinks the sleeve to fit
- Conveyor system – Moves products through each stage
At AFM, these systems can be customized to match your container shape, speed requirements, and production volume.
Why Choose Shrink Sleeve Labeling?
Shrink sleeve technology offers several advantages over traditional labeling methods:
- 360° Branding – Maximum surface area allows for bold, eye-catching designs.
- Tamper Evidence – Sleeves can extend over caps to provide visible tamper protection.
- Versatility – Works on plastic, glass, and metal containers—even uniquely shaped ones.
- Durability – Labels resist moisture, abrasion, and handling damage.
Is Shrink Sleeve Labeling Right for Your Product?
Shrink sleeve labeling is ideal for brands looking to:
- Stand out on crowded retail shelves
- Introduce new product shapes
- Enhance product security
- Upgrade packaging aesthetics
However, selecting the right machine depends on production speed, container type, and material specifications. That’s where AFM’s expertise comes in.
Partner with AFM for Advanced Labeling Solutions
At AFM, we supply shrink sleeve labeling systems engineered for reliability, precision, and long-term performance. Whether you’re launching a new product or upgrading your packaging line, our team helps you select the right configuration to meet your operational goals.
If you’d like to learn more about how shrink sleeve labeling can transform your packaging process, contact AFM today for a consultation.
Ready to elevate your packaging? Let AFM help you apply innovation—one sleeve at a time.
